Female Hella Plug / Socket 12/24v

Female Hella Plug / Socket 12/24v

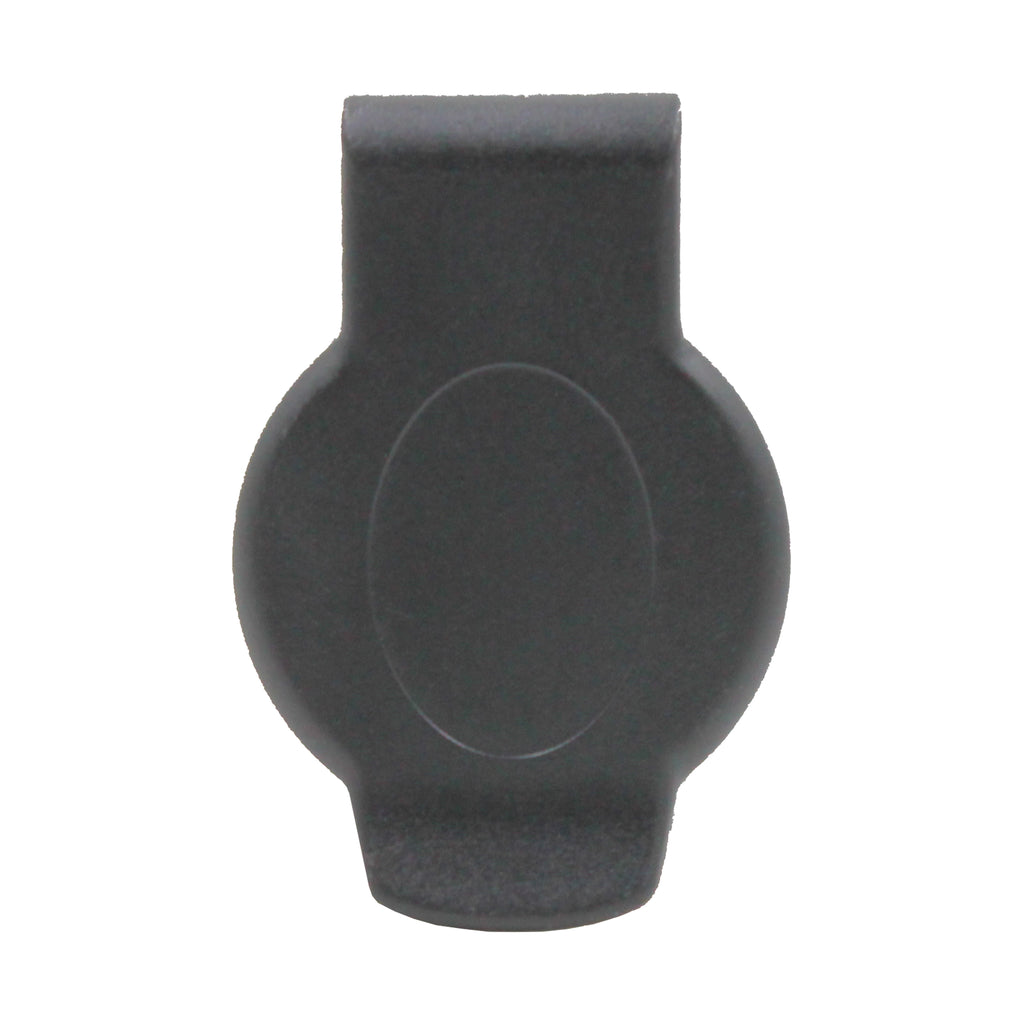

Dustproof and waterproof plug for protecting socket when not in use

Specifications

Size of cut out required for item: 18mm ⌀

Face surface size: 26mm (W) x 38mm (H)

Depth: 35mm (Not including terminal length)

Terminals: 6.3mm (W) x 10mm (L) - Standard

Input voltage: DC 12v-24v

Max output: 15A @ 12v or 7.5A @ 24v

Includes:

• 1 x Merit type socket
• 1 x Lock ring
