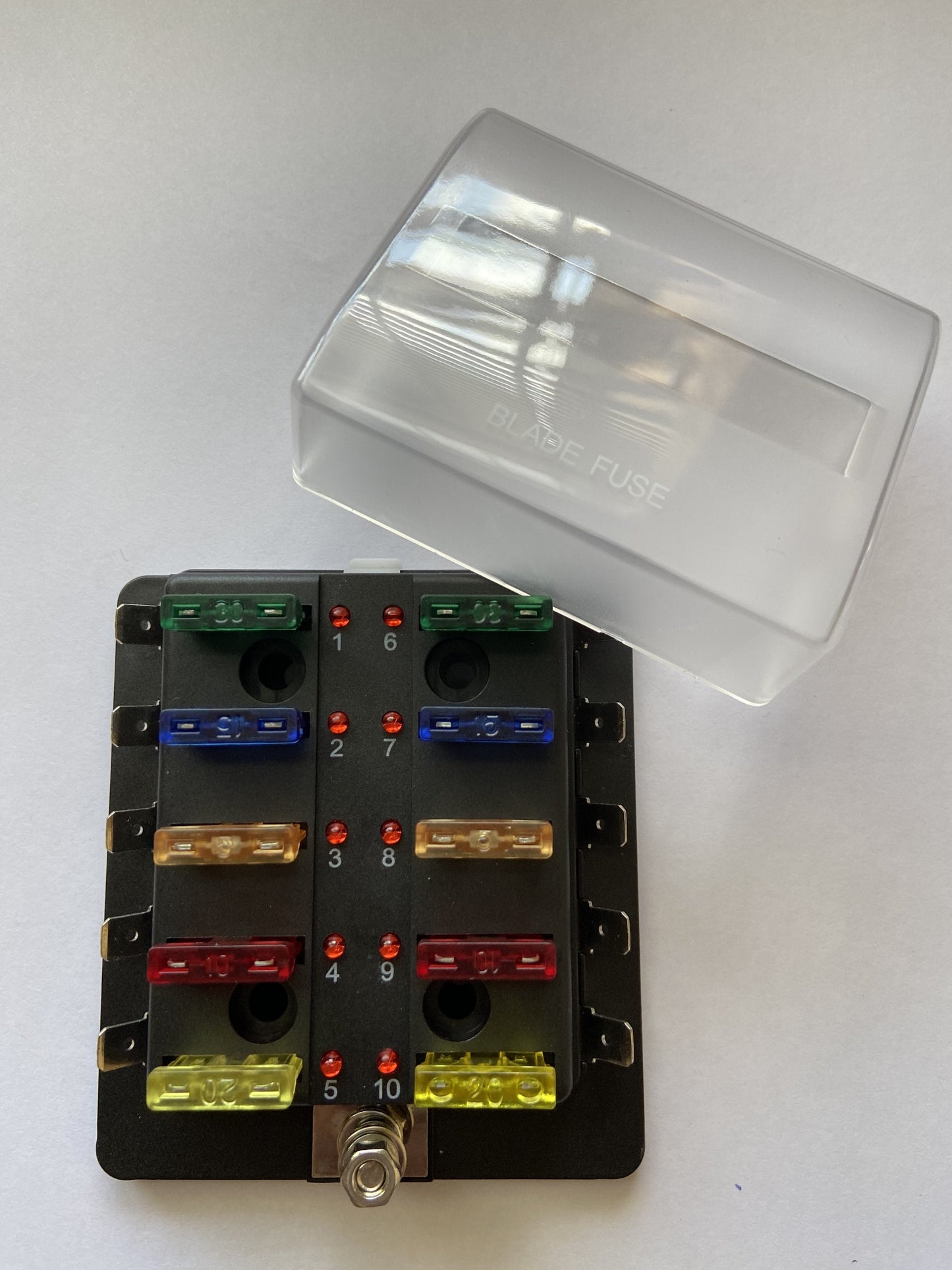

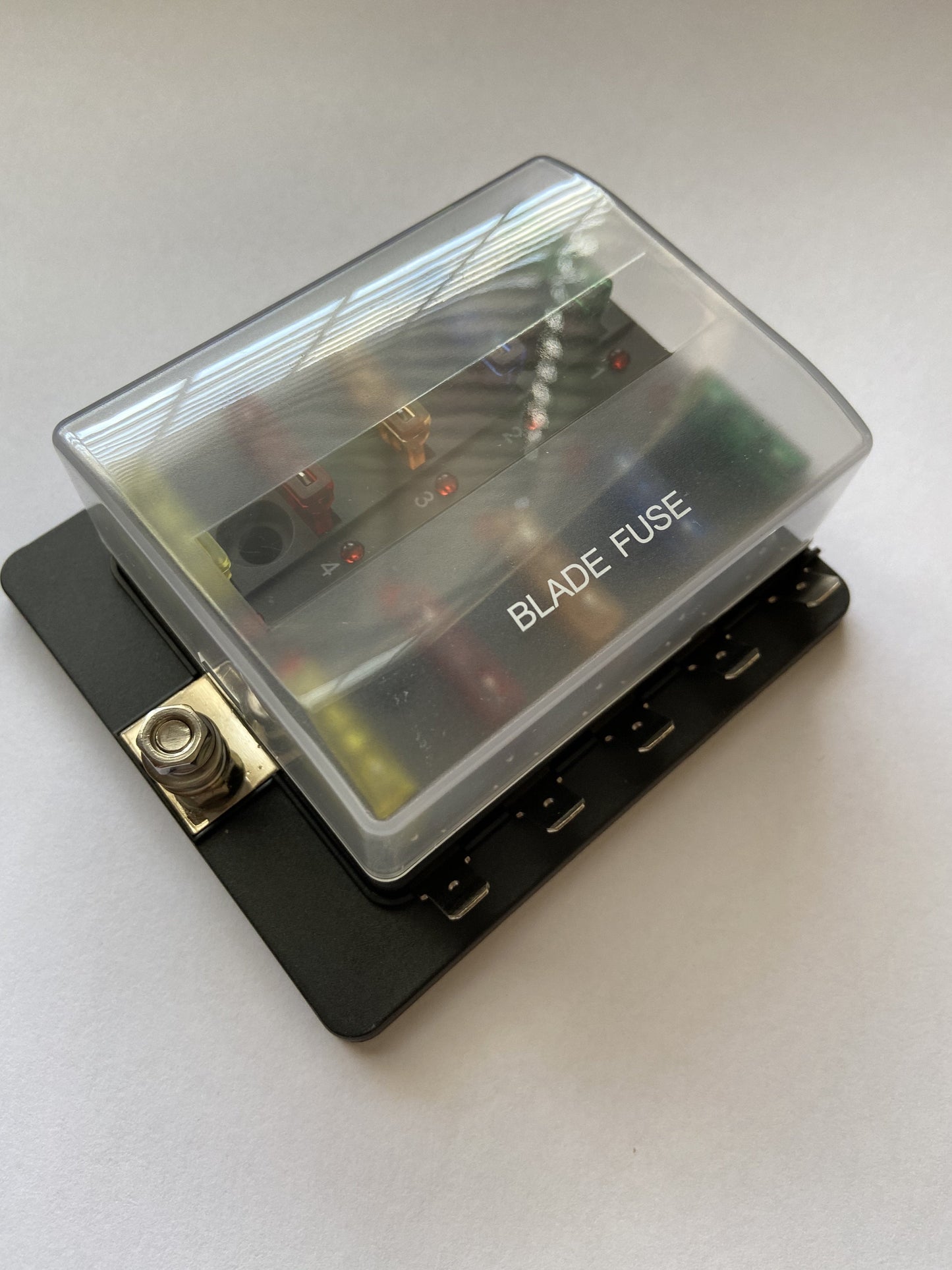

10 Way Blade Fuse Box with LED - Spade Terminal
10 Way Blade Fuse Box with LED - Spade Terminal
Regular price
R 320.00 ZAR
Regular price
Sale price
R 320.00 ZAR
Unit price
per
Couldn't load pickup availability
Feature:
1.10 way fuse box with Fuses (5A 10A 15A 20A 30A) & Terminals.
2.Each fuse is numbered for easy installation & identification.
3.Splash and dust-proof design.
4.Sturdy and robust construction.
5.The clear vibration resistant protective cover is securely held in place by means of a push latch system.
6.LED fuse blown indicator-When or if a fuse blows the red LED next to the problem fuse illuminates allowing
for fast and hassle free identification of a fault.
Specification:
| Quantity of circuits / fuse slots | 10 |
| Positive common bus connection | M5 stud (5mm bolt) |
| Output connections | Standard 6.3mm spade terminals |
| Dimensions | 95mm x 85mm x 35mm |
| Current rating per circuit / fuse | Up to 30 amp |
| Current rating per box | Up to 100 amp |
| Volt rating | 12V~32V |
| Accepting fuse | Standard blade fuse (ATO) |
| Temperature range | -20-125(℃) |
| Type | Electrical Systems |
| Sub-Type | Fuses & Fuse Boxes |
